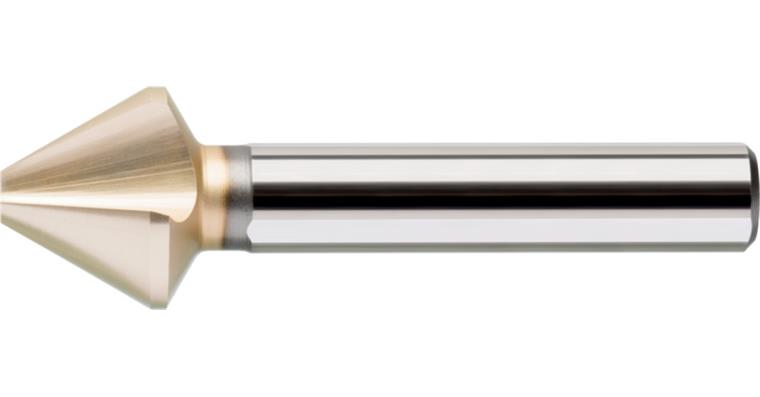

ATORN countersink, 60°, HSS, T=3, extremely unequal pitch, 8 mm, 3-flat shank

ATORN countersink, 60°, HSS, T=3, extremely unequal pitch, 8 mm, 3-flat shank

ATORN countersink, 60°, HSS, T=3, extremely unequal pitch, 8 mm, 3-flat shank
Item no: 1012291 305

Online price:

Available in 4-6 working days.

Application
For producing 60° counterbores up to 1300 N/mm².

Execution
Profile-ground triple-edge countersink with radial relief, with extremely uneven pitch

Advantage
  • Radial relief ensures optimum chip breaking
  • Uneven pitch ensures excellent surfaces without chatter marks and minimisation of cutting forces
  • 3-sided shaft ensures very good power transmission and prevents the tool from spinning in the drill chuck or even in the cordless drill


Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSS
Surface: TiN/ZrN
Number of cutting edges: 3 PCS
Tool holding device: Parallel shank with three tightening surfaces
Spot-facer diameter: 8,0 mm
Tip diameter: 2,0 mm
Shank diameter: 6 mm
Length: 50 mm
f steel 700: 0,1 mm/r
DIN: 334

ATORN-No.: 10420334

EAN no.: 4050293623727

Product Datasheet Datasheet cutting values
