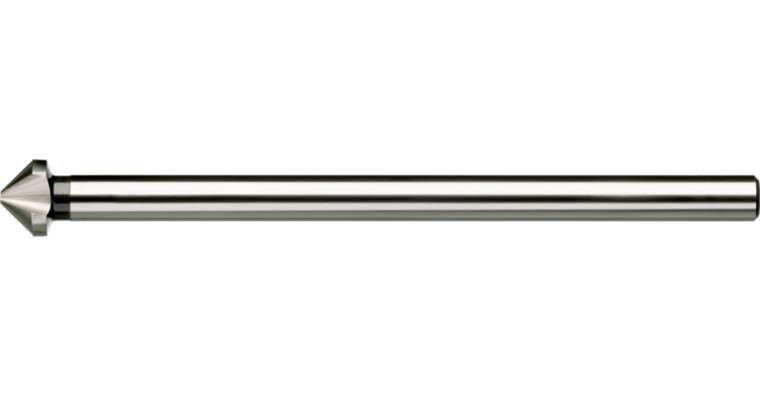

ATORN countersink, 90°, HSS, T=3, extra long, 9.4 x 106 mm

ATORN countersink, 90°, HSS, T=3, extra long, 9.4 x 106 mm

ATORN countersink, 90°, HSS, T=3, extra long, 9.4 x 106 mm
Item no: 1012282 104

Online price:

Available in 6-8 working days.

Application
For producing deep-set 90° counterbores up to 1000 N/mm².

Execution
profile-ground extra-long triple-edge countersink

Advantage
  • radial relief ensures optimum chip breaking
  • deep-set countersinks are made easy for the user


Brand: ATORN
Material to be processed: Universal use
Countersink angle: 90 Degree
Cutting material: HSS
Number of cutting edges: 3 PCS
Surface: Uncoated
Tool holding device: HA parallel shank
Spot-facer diameter: 9,4 mm
Tip diameter: 2,2 mm
Length: 106 mm
Shank diameter: 6 mm
f steel 700: 0,11 mm/r
DIN: 0 - not applicable

ATORN-No.: 10640505

EAN no.: 4050293067538

Product Datasheet Datasheet cutting values
