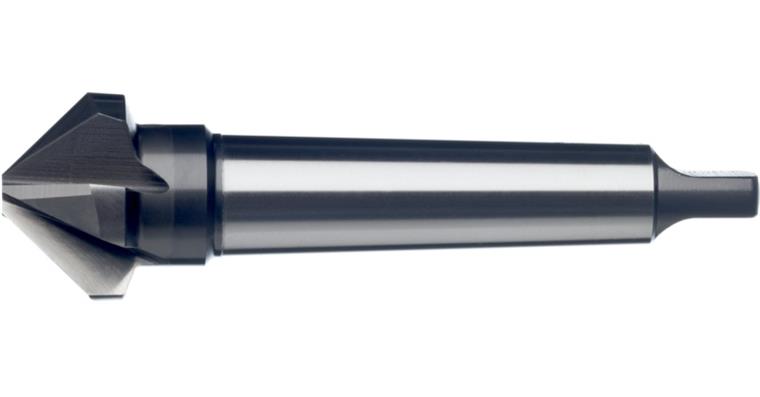

ATORN countersink, 90°, HSSE, multi-blade cutter, T=5, 31.0 x 111 mm, MK 2

ATORN countersink, 90°, HSSE, multi-blade cutter, T=5, 31.0 x 111 mm, MK 2

ATORN countersink, 90°, HSSE, multi-blade cutter, T=5, 31.0 x 111 mm, MK 2
Item no: 1012281 107

Online price:

Available in 6-8 working days.

Application
For producing 90° countersinks up to 1300 N/mm².

Execution
profile-ground multi-edge countersink with radial relief on the cutter

Advantage
  • excellent service life for Hardox 400, Creusabro, Inconel, Nimonic, Hastelloy, Monel, titanium and titanium alloy materials
  • innovative and patented cutter geometry with a large number of cutters ensures excellent cutting performance and good surface qualities


Brand: ATORN
Countersink angle: 90 Degree
Cutting material: HSSE
Surface: Uncoated
Number of cutting edges: 5 PCS
Tool holding device: Morse taper shank
Spot-facer diameter: 31,0 mm
Tip diameter: 6,0 mm
Length: 111 mm
Morse taper size: MK 2

ATORN-No.: 10642650

EAN no.: 4050293068887

Product Datasheet Datasheet cutting values
