ATORN countersink, 90°, HSS-TiNAIO x T=3, 25.0 x 67 mm, DIN 335 shape C

ATORN countersink, 90°, HSS-TiNAIO x T=3, 25.0 x 67 mm, DIN 335 shape C

ATORN countersink, 90°, HSS-TiNAIO x T=3, 25.0 x 67 mm, DIN 335 shape C
Item no: 1012268 119

Online price:

Available in 6-8 working days.

Application
For producing 90° counterbores up to 1000 N/mm².

Execution
profile-ground triple-edge countersink with radial relief

Advantage
  • radial relief ensures optimum chip breaking
  • TiNAlOX coating for increased service life requirements


Brand: ATORN
Material to be processed: Universal use
Countersink angle: 90 Degree
Cutting material: HSS
Surface: TiNALOX
Number of cutting edges: 3 PCS
Tool holding device: HA parallel shank
Spot-facer diameter: 25,0 mm
Tip diameter: 3,8 mm
Shank diameter: 10 mm
Length: 67 mm
f steel 700: 0,18 mm/r
DIN: 335

ATORN-No.: 10640371

EAN no.: 4050293067439

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN screw tap HSSE-PM ULTRA HL C 371 50° M3 0.5 ISO3 2.5xD CNC
  •
    ATORN countersink, 90°, HSS-TiNAIO x T=3, 19.0 x 63 mm, DIN 335 shape C
  •
    ATORN countersink, 90°, HSS-TiNAIO x T=3, 15.0 x 60 mm, DIN 335 shape C
  •
    ATORN SK40 surface chuck (ISO 7388-1), dia. 14 mm, A=50 mm coolant bore
  •
    ATORN screw tap HSSE-TiN C 371 15° NPT 1/4 in ISO2 TH/BH tapered CNC M
  •

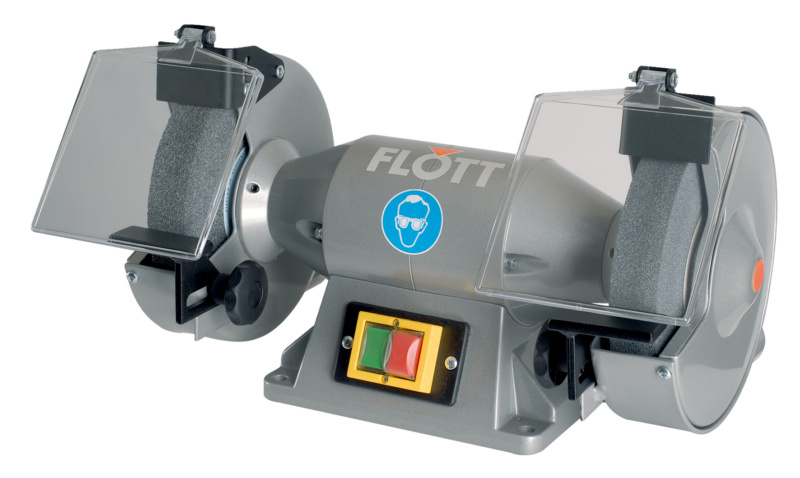

    Bench grinder TS 175 AF dia. 175 mm B=25 mm bore dia. 32 mm 520 watts
  •
