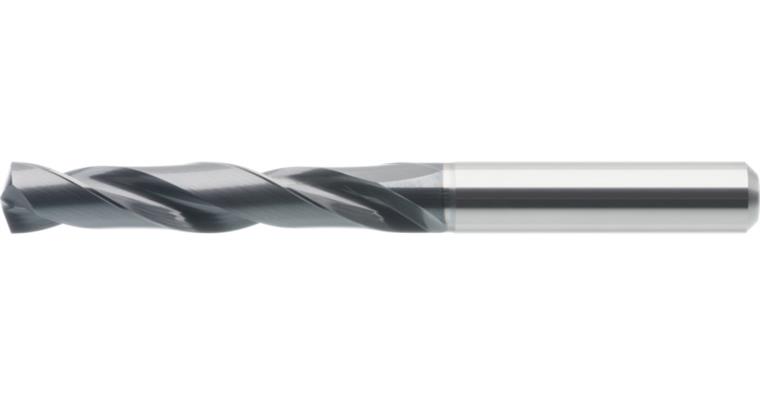

ATORN solid carbide drill UNI TiAlNplus 5xD without IC 6.8 mm straight shank HA

ATORN solid carbide drill UNI TiAlNplus 5xD without IC 6.8 mm straight shank HA

ATORN solid carbide drill UNI TiAlNplus 5xD without IC 6.8 mm straight shank HA
Item no: 1011163 169

Online price:

Available for immediate delivery

Application
for HPC boring up to a strength of 1300 N/mm²

Execution
  • solid carbide TiAlNplus high-performance drill
  • 2 drill heels
  • Cone polished section
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • economic drilling in a wide variety of materials with high cutting values
  • newly developed geometry in conjunction with a multi-layer coating individually tailored to drilling ensures significantly longer service lives
  • Cutting edge finishing reduces micro-fractures and increases the service life


Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 6,8 mm
Tolerance of cutting edge diameter: h7
Cutting material: SC
Surface: TiAlN plus
Max. drilling depth (D): 5xD
Type: HPC UNI
Coolant supply: External
Tool holding device: HA parallel shank
Angle of the tip: 140 Degree
Shank diameter: 8 mm
Chip flute length: 53 mm
Length: 91 mm
f steel 1000: 0,15 mm/r
DIN: 6537

ATORN-No.: 10915271

EAN no.: 4050293528336

Product Datasheet Datasheet cutting values
