ATORN 180° high-performance drill, SC TiAlN, 5xD 5.55 mm x 6 mm x 82 mm

ATORN 180° high-performance drill, SC TiAlN, 5xD 5.55 mm x 6 mm x 82 mm

ATORN 180° high-performance drill, SC TiAlN, 5xD 5.55 mm x 6 mm x 82 mm
Item no: 1011100 134

Online price:

Available in 4-6 working days.

Application
For producing drill holes with a 180° hole base in one operation

Execution
Heavy-duty solid carbide drill with 180° precision grinding and drill heels

Advantage
  • drilling and counterboring in a single work step at high cutting speed
  • Innovative geometry ensures good chip removal

Notes
The maximum permissible inclination of the drilling surface is 15° correction factor = 0.25
For spot drilling, multiply feed f [mm/U] by correction factor Kf
  • Spot drill with reduced feed until the tool cuts to 0.25xD over the total ø

  • For angled spot drilling: Retract at double feed rate f [mm/U]

  • After spot drilling at reduced feed rate (correction factor), drilling continues at feed rate f [mm/U] according to recommended cutting data without correction factors

  • Setting a pilot hole is recommended for drilling on flat surfaces.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Angle of the tip: 180 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 5,55 mm
Shank diameter: 6 mm
Chip flute length: 44 mm
Length: 82 mm
f steel 1000: 0,13 mm/r
Edge protection chamfer length: 0,28 mm

ATORN-No.: 12040498

EAN no.: 4050293447279

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE-PM TiN C 376 50° M12 1.75 mm ISO2 S 2.5xD CNC
  •
    ATORN screw tap HSSE C 374 40° MF24 1.5 mm ISO2 S 2.5xD CNC P
  •
    ATORN metal circ saw blade, SC, coarse tooth, 25 mm x 0.2 mm x 8 mm, B T=20
  •
    ATORN metal circ saw blade, SC, finely toothed, 25 mm x 0.1 mm x 8 mm A T=80
    35,51 €
  • ATORN metal circ saw blade, SC, finely toothed, 25 mm x 1.3 mm x 8 mm A T=40
    36,98 €
  • ATORN metal circ saw blade, SC, finely toothed, 30 mm x 1.5 mm x 8 mm A T=48
    47,66 €
  • 1/2 Zoll Elektronischer Drehmoment-Drehwinkelschlüssel 17-340 Nm
  •
    3/4 Zoll Elektronischer Drehmoment-Drehwinkelschlüssel 40-800 Nm
  •
    Pliers wrench 180 mm up to AF 40 mm 15x position box joint
  •
    Pliers wrench 180 mm up to AF 40 mm 13x position box joint
  •

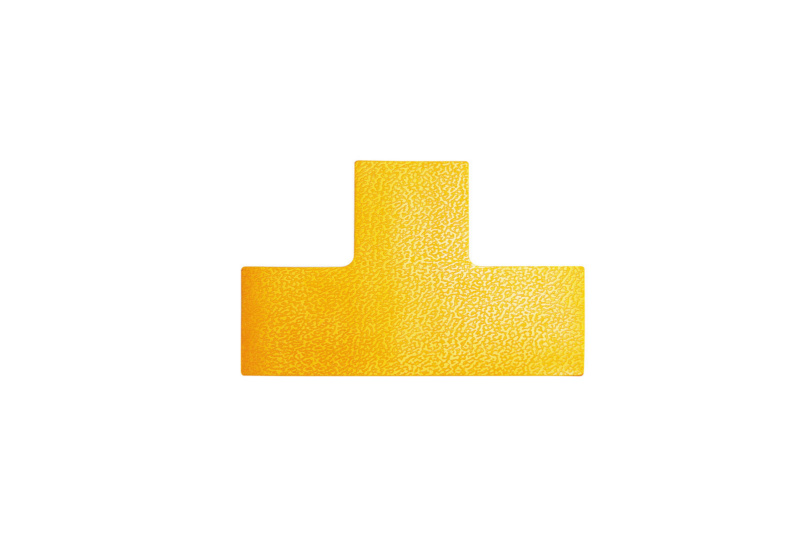

    Parking space marking T-shape yellow self-adhesive pack=10 pieces 100x150 mm
  •

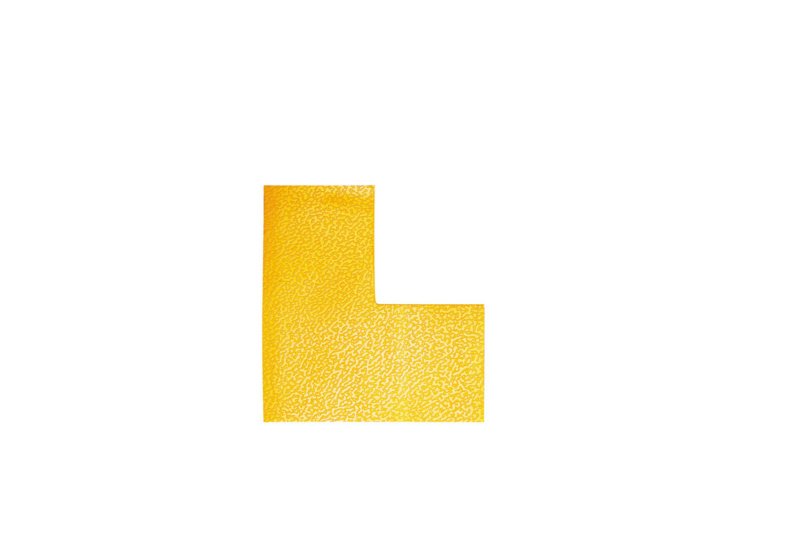

    Parking space marking L-shape yellow self-adhesive pack=10 pieces 100x100 mm
