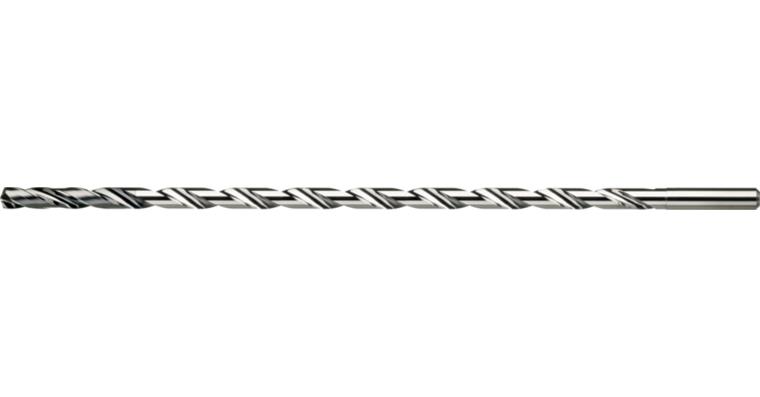

ATORN high-perf. drill, SC TiAlN, HPC 25xD 7.0 mm x 8 mm x 240 mm HA internal

ATORN high-perf. drill, SC TiAlN, HPC 25xD 7.0 mm x 8 mm x 240 mm HA internal

ATORN high-perf. drill, SC TiAlN, HPC 25xD 7.0 mm x 8 mm x 240 mm HA internal
Item no: 1011094 125

Online price:

Still in stock: 4

Application
For HPC deep-hole boring up to a strength of 1300 N/mm².

Execution
  • High-performance deep hole drill, solid carbide TiAlN
  • 4 drill heels
  • Four grinding faces
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • very good all-round properties and precise cutting performance with high cutting rates
  • unique, extremely hard, low-friction, temperature-resistant and form-fitting TiAlN coating ensures a longer service life
  • Cutting edge preparation minimises micro-fractures on the cutter
  • the entire range is coordinated in terms of angle and diameter


Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 7 mm
Tolerance of cutting edge diameter: h7
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 25xD
Type: HPC UNI
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 135 Degree
Shank diameter: 8 mm
Chip flute length: 200 mm
Length: 240 mm
f steel 1000: 0,12 mm/r
DIN: 0 - not applicable

ATORN-No.: 10912754

EAN no.: 4050293368970

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN high-perf. drill, SC TiAlN, HPC 16xD 7.5 mm x 8 mm x 180 mm HA internal
  •
    ATORN high-perf. drill, SC TiAlN, HPC 20xD 2.3 mm x 4 mm x 92 mm HA internal
  •
    ATORN high-perf. drill, SC TiAlN, HPC 25xD 4.5 mm x 6 mm x 180 mm HA internal
    347,20 €
  • ATORN high-perf. drill, SC TiAlN, HPC 30xD 2.0 mm x 4 mm x 115 mm HA internal
  •
    ATORN high-perf. drill, SC TiAlN, HPC 30xD 2.3 mm x 4 mm x 115 mm HA internal
  •
    ATORN high-perf. drill, SC TiAlN, HPC 30xD 8.0 mm x 8 mm x 315 mm HA internal
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M4
  •
    Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 5/8 inch
  •
    Blind rivet assortment with tool and 12 different blind rivet types in box
  •
    VDE electrical insulating tape DIN EN 60454, 10 m, 15x0.15 mm, brown
  •
    Counter-support for ball bearing internal extractor, for sizes 0-5
  •

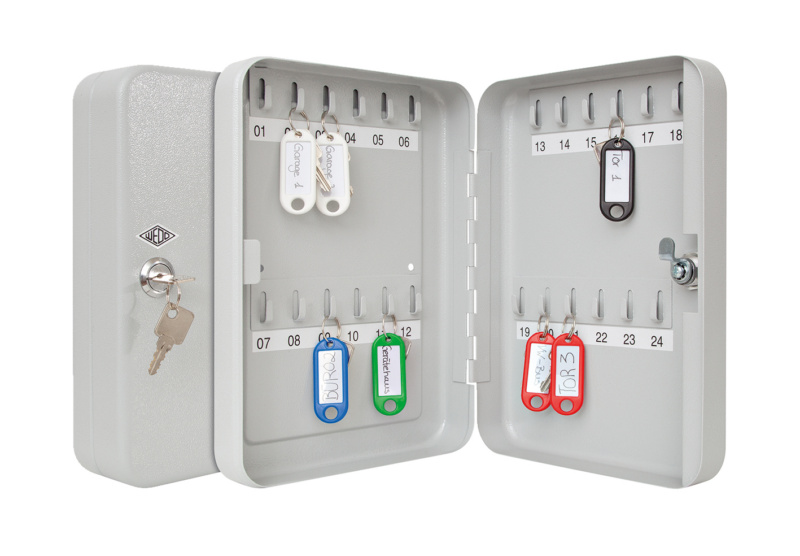

    Key cabinet 24 hooks safety lock light grey HxWxD 250x180x60 mm
