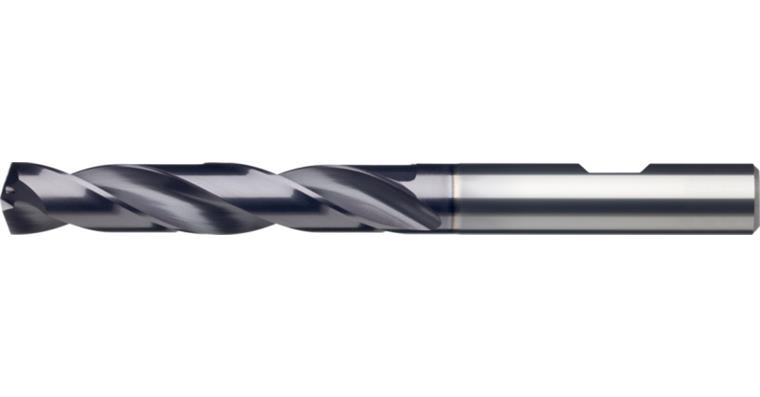

ATORN high-perf. SC drill ULTRA M HPC 5xD 3.6 mm x 6 mm x 66 mm HB internal

ATORN high-perf. SC drill ULTRA M HPC 5xD 3.6 mm x 6 mm x 66 mm HB internal

ATORN high-perf. SC drill ULTRA M HPC 5xD 3.6 mm x 6 mm x 66 mm HB internal
Item no: 1011074 537

Online price:

Available in 6-8 working days.

Application
For HPC boring in stainless steel, titanium alloys, nickel alloys and special alloys.

Execution
  • Solid carbide high-performance drill ULTRA M
  • 2 drill heels
  • 4 grinding faces
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • innovative cutting geometry with extremely effective cutting edge
  • newly developed form-fitting ULTRA M coating for improved service life
  • Cutting edge preparation minimises micro-fractures on the cutter


Brand: ATORN
Material to be processed: Stainless steel | Special alloy
Cutting edge diameter: 3,6 mm
Tolerance of cutting edge diameter: m7
Cutting material: SC
Surface: ULTRA M
Max. drilling depth (D): 5xD
Type: HPC VA
Coolant supply: Internal
Tool holding device: HB parallel shank
Angle of the tip: 140 Degree
Shank diameter: 6 mm
Chip flute length: 28 mm
Length: 66 mm
f stainless steel: 0,09 mm/r
DIN: 6537

ATORN-No.: 10482069

EAN no.: 4050293577440

Product Datasheet Datasheet cutting values
