ATORN 3-blade solid carbide drill, diameter 10.0 mm, tip angle 150°

ATORN 3-blade solid carbide drill, diameter 10.0 mm, tip angle 150°

ATORN 3-blade solid carbide drill, diameter 10.0 mm, tip angle 150°
Item no: 1011040 200

Online price:

Available in 6-8 working days.

Application
special geometry with 3 cutting edges for precise position and shape drilling into the main body.

Execution
Solid carbide drill bit, 3-edge, 3xD, uncoated, for machining cast and non-ferrous metals

Advantage
special geometry with three cutting edges: innovative cutting geometry for precise position and shape drilling into the main body


Brand: ATORN
Material to be processed: Cast metal | Aluminium
Cutting material: SC
Surface: Uncoated
Max. drilling depth (D): 5xD
Angle of the tip: 150 Degree
Coolant supply: External
Tool holding device: HA parallel shank
Number of cutting edges: 3 PCS
Cutting edge diameter: 10 mm
Shank diameter: 10 mm
Chip flute length: 55 mm
Length: 89 mm
f steel 1000: 0,19 mm/r
DIN: 6539

ATORN-No.: 10473178

EAN no.: 4050293040418

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN chamfer and centring cutter, 30°, diameter 16.0 x 120 mm
  •
    Autogen twin hose, flame-retardant, 40 metres, 6x5 blue, 9x3.5 red
  •
    Inner protection plate 90x110 mm for Weldmaster® ECO PU=10 pieces
  •
    Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiN for VA steels M16
  •
    ATORN SC TiAlSiN HPC hard drill 3xD Ø 8.7 mm x 10 mm x 89 mm HA external
  •
    ATORN mini cutting insert AFR 5.0mm B2.0 L22 HC5640
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 12.80 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 11.40 mm
  •
    ATORN 3-blade solid carbide drill, diameter 3.3 mm straight shank HA
  •

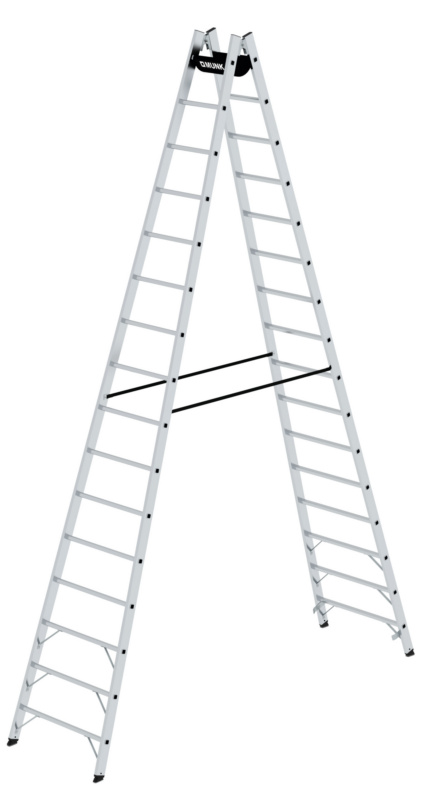

    Aluminium step ladder 2x16 rungs working height 5.90 m ladder length 4.63 m
  •
