ATORN solid carbide twist drill bit TiALN type N 5xD 3.0 mm x 61 mm 118°

ATORN solid carbide twist drill bit TiALN type N 5xD 3.0 mm x 61 mm 118°

ATORN solid carbide twist drill bit TiALN type N 5xD 3.0 mm x 61 mm 118°
Item no: 1011022 110

Online price:

Available for immediate delivery

Application
Standard geometry for use up to a strength of 1300 N/mm².

Execution
Standard solid carbide tool with universal precision-ground flutes

Advantage
  • excellent all-round properties and precise cutting pattern
  • universal use: minimises tool costs and improves flexibility
  • Cutting edge preparation minimises micro-fractures on the cutter
  • TiAlN coating for up to 50% longer service life, dry processing possible in steel


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Type: N
Tool holding device: HA parallel shank
Cutting edge diameter: 3 mm
Chip flute length: 33 mm
Length: 61 mm
f steel 1000: 0,09 mm/r
DIN: 338

ATORN-No.: 10473043

EAN no.: 4050293039283

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN solid carbide twist drill bit TiALN type N 5xD 2.2 mm x 53 mm 118°
  •
    ATORN solid carbide twist drill bit TiALN type N 5xD 4.4 mm x 80 mm 118°
  •
    ATORN solid carbide twist drill bit TiAlN type N 3xD 3.0 mm x 46 mm 118°
  •
    ATORN solid carbide twist drill bit TiAlN type N 3xD 5.5 mm x 66 mm 118°
  •
    ATORN solid carbide twist drill bit TiAlN type N 3xD 6.1 mm x 70 mm 118°
  •
    ATORN solid carbide twist drill bit TiAlN type N 3xD 7.1 mm x 74 mm 118°
  •
    Nylon knitted glove Royaltec Tech 2107 PU = 12 pairs size 10
    32,40 €
  • Nylon knitted glove Oil Grip PU = 12 pairs size 9
    33,80 €
  • ATORN A-Mech 2 assembly glove, size 10
    2,60 €
  • Cut protection glove Royaltec Cut 6601 PU=1 pair size 9
    7,80 €
  • Disposable glove Dermatril® 740 PU=100 pieces size 9
    26,40 €

[Text nicht gefunden]

  • ATORN NC spotting drill HSSE-TiN 90°, 6.0 mm x 66 mm HA
  •
    Kegel- und Entgratsenker 90° rechtsschneidend mit Zylinderschaft HSS/TiN Ø 20 mm
  •
    Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf. uneven pitch dia.12.4 m
  •
    Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf., uneven pitch dia. 25.0 mm
  •
    Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf., uneven pitch dia. 31.0 mm
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN M4
  •
    VHM-Entgrater 90° TiAlN kurz Zylinderschaft DIN 6535 HB 6 Schneiden Ø 12x78 mm
  •

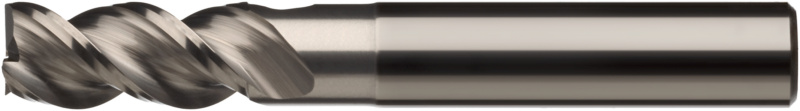

    ATORN solid carbide end mill T3 HA, 12.0 x 28 x 39 x 84 mm, plain
  •
