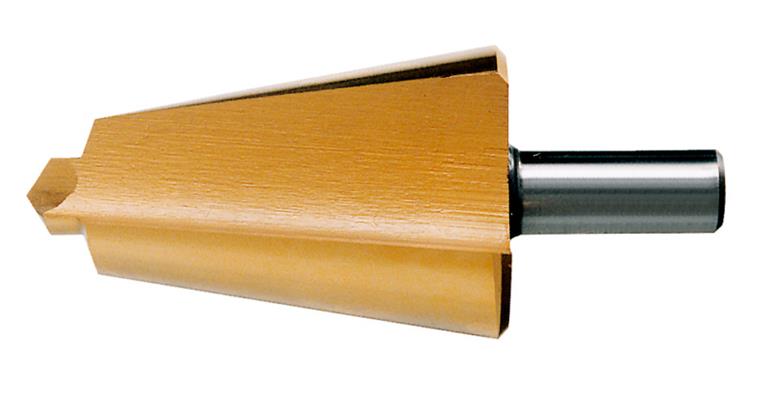

Slabbing cut drill reamer HSS-E+TiN size 5 for bore dia. 36–50 mm

Slabbing cut drill reamer HSS-E+TiN size 5 for bore dia. 36–50 mm

Slabbing cut drill reamer HSS-E+TiN size 5 for bore dia. 36–50 mm
Item no: 1010936 105

Online price:

Available in 6-8 working days.

Application
For burr- and chatter-free drilling and reaming of holes in thin materials in a single operation. For annealed sheet steels, stainless-steel sheets, body panels, non-ferrous metals, thin-walled pipes and plastics such as PVC, Plexiglas, Resopal, among others, as well as hard paper, plywood, etc.

Execution
With straight shank

Notes
Cooling lubricant required! (Art. no. 1010937 101).

Brand: LIZZARD
Cutting material: HSSE
Surface: TiN
Tool holding device: Cylinder shank
Type: 5
Min./max. cutting edge diameter: 36-50 mm
Shank diameter: 13 mm
Length: 87 mm
Coolant supply: External
Cutting direction: Right-hand cutting
DIN: 344
Max. cutting edge diameter: 50 mm
Min. cutting edge diameter: 36 mm
Twist angle: 0 - not applicable
Material to be processed: Steel
Shank style: Cylindrical

EAN no.: 4024496008575

Product Datasheet
