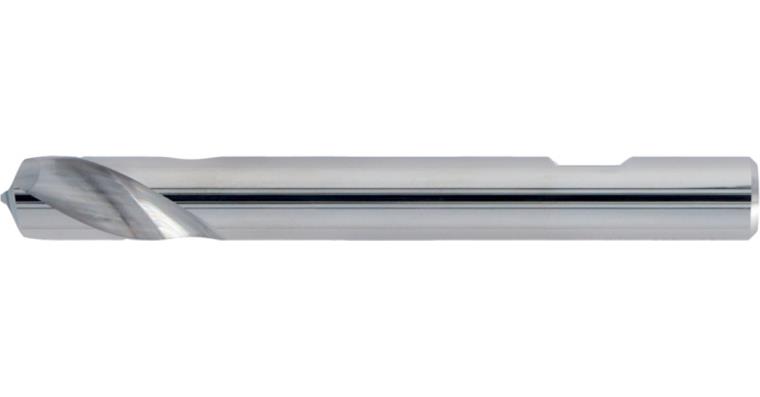

NC spotting drill, solid carbide 142°, diameter 6 mm x 66 mm HB shaft

NC spotting drill, solid carbide 142°, diameter 6 mm x 66 mm HB shaft

NC spotting drill, solid carbide 142°, diameter 6 mm x 66 mm HB shaft
Item no: 1010907 106

Online price:

Available in 5-7 working days.

Application
For 142° spot drilling for the following twist drills on CNC machines.

Execution
Spiral-fluted design

Advantage
  • Short design with precise point geometry and chisel edge ensure form-true and process-reliable spot drilling
  • The follow-on tool does not run off centre
  • Precise gauge thanks to special point thinning of the chisel edge

Notes
Diameter less than 6 mm with HA shaft

Brand: ATORN
Material to be processed: Universal use
Angle of the tip: 142 Degree
Cutting material: SC
Surface: Uncoated
Tool holding device: HB parallel shank
Cutting edge diameter: 6 mm
Cutting edge length: 20 mm
Length: 66 mm
f steel 1300: 0,14 mm/r

ATORN-No.: 10916156

EAN no.: 4050293695717

Product Datasheet Datasheet cutting values
