ATORN NC spotting drill HSSE TiN 120°, 12.0 mm x 102 mm HA

ATORN NC spotting drill HSSE TiN 120°, 12.0 mm x 102 mm HA

ATORN NC spotting drill HSSE TiN 120°, 12.0 mm x 102 mm HA
Item no: 1010892 412

Online price:

Available in 4-6 working days.

Application
For NC spot drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding

Advantage
  • Kurze Bauform mit exaktem Spitzenanschliff und Querschneide, sorgen für ein formgenaues und prozesssicheres Anbohren
  • short design with precise point geometry and chisel edge ensure form-true and reliable spot drilling
  • 120° NC spotting drill ensures precise centring (deflection of drill is minimised)
  • TiN coating for increased service life requirements


Brand: ATORN
Material to be processed: Steel | Stainless steel | Cast metal | Titanium alloy | Aluminium | Plastic
Angle of the tip: 120 Degree
Cutting material: HSSE
Surface: TiN
Tool holding device: HA parallel shank
Cutting edge diameter: 12 mm
Cutting edge length: 30 mm
Length: 102 mm
f steel 1000: 0,08 mm/r

ATORN-No.: 10440142

EAN no.: 4050293012910

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

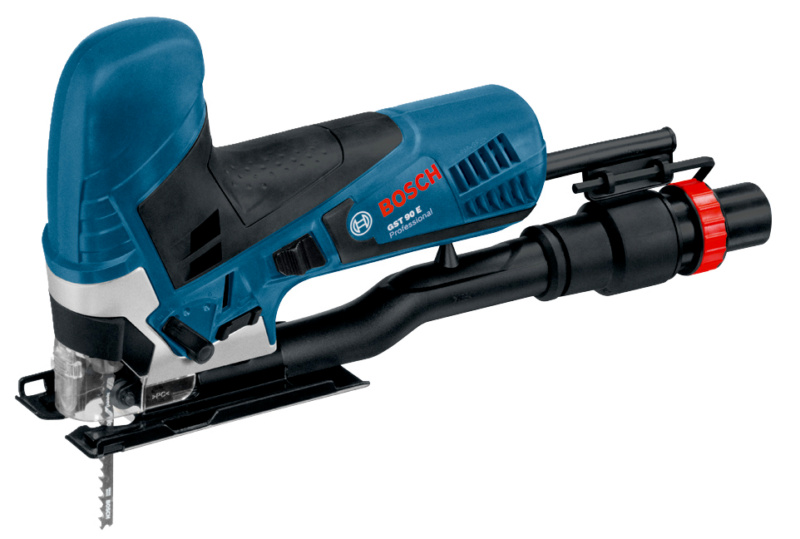

  • GST 90 E pendulum saw stroke number 500-3,100 rpm stroke 26 mm 650 watts 2.3 kg
  •
