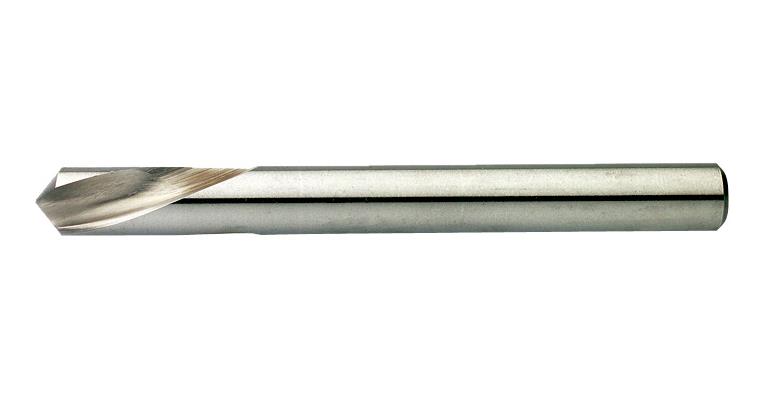

NC spotting drill HSSE 90° D 10.0x89 mm

NC spotting drill HSSE 90° D 10.0x89 mm

NC spotting drill HSSE 90° D 10.0x89 mm
Item no: 1010891 206

Online price:

Will be ordered for you

Application
For drilling in steel and cast steel, alloyed and unalloyed, up to approx. 1,000 N/mm2 strength, grey cast iron, malleable iron, spheroidal graphite iron, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, high-pressure die casting, tough brass. In particular, for precision spotting and countersinking work on NC and CNC-controlled machines, jig boring machines etc.

Execution
  • 90° tip angle
  • Straight shank
  • Right-cutting
  • Extremely short chip flutes
  • Without chamfers
  • Cone polished section
  • Special drill bit with weak core

Notes
Not suitable for drilling deep holes! TiN-coated NC spotting drill, as well as with another tip angle, in an extended design or with MT shank deliverable on request.

Brand: ATORN
Material to be processed: Steel
Angle of the tip: 90 Degree
Cutting edge diameter: 10 mm
Length: 89 mm
Shank diameter: 10 mm
Chip flute length: 25 mm
Number of cutting edges: 2 PCS
Cutting direction: Right-hand cutting
f steel 700: 0,10 mm/r
Coolant supply: External
