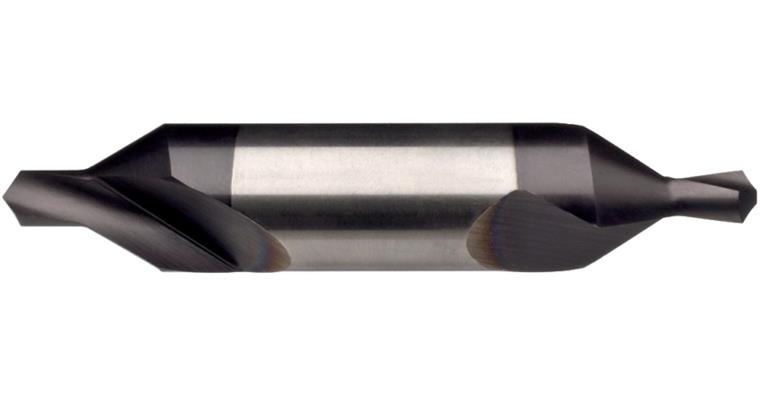

ATORN centre drill HSSE TiAlN form A 2.0 mm x 5 mm x 40 mm

ATORN centre drill HSSE TiAlN form A 2.0 mm x 5 mm x 40 mm

ATORN centre drill HSSE TiAlN form A 2.0 mm x 5 mm x 40 mm
Item no: 1010872 208

Online price:

Available for immediate delivery

Application
For centre drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding. diameter 0.5–0.8, ground on one side

Advantage
  • radial relief ensures optimum chip breaking
  • TiAlN coating ensures long service life

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSSE
Surface: TiAlN
Form: A
Tool holding device: HA parallel shank
Cutting edge diameter: 2 mm
Shank diameter: 5,00 mm
Min./max cutting edge length: 2.5-2.9 mm
Length: 40 mm
f steel 1000: 0,02 mm/r
DIN: 333

ATORN-No.: 10440016

EAN no.: 4050293011821

Product Datasheet Datasheet cutting values
