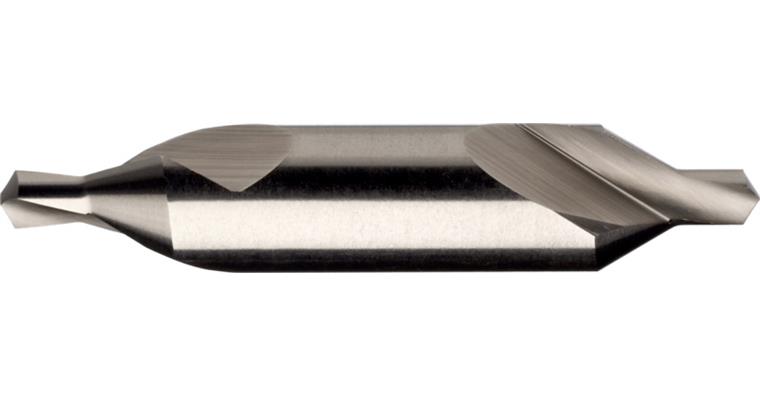

ATORN centre drill HSSE form A 4.0 mm x 10 mm x 56 mm

ATORN centre drill HSSE form A 4.0 mm x 10 mm x 56 mm

ATORN centre drill HSSE form A 4.0 mm x 10 mm x 56 mm
Item no: 1010870 214

Online price:

Will be ordered for you

Application
For centre drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding. diameter 0.5–0.8, ground on one side

Advantage
radial relief ensures optimum chip breaking

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSSE
Surface: Uncoated
Form: A
Tool holding device: HA parallel shank
Cutting edge diameter: 4 mm
Shank diameter: 10,00 mm
Min./max cutting edge length: 5-5.6 mm
Length: 56 mm
f steel 1000: 0,04 mm/r
DIN: 333

ATORN-No.: 10440076

EAN no.: 4050293012323

Product Datasheet Datasheet cutting values
