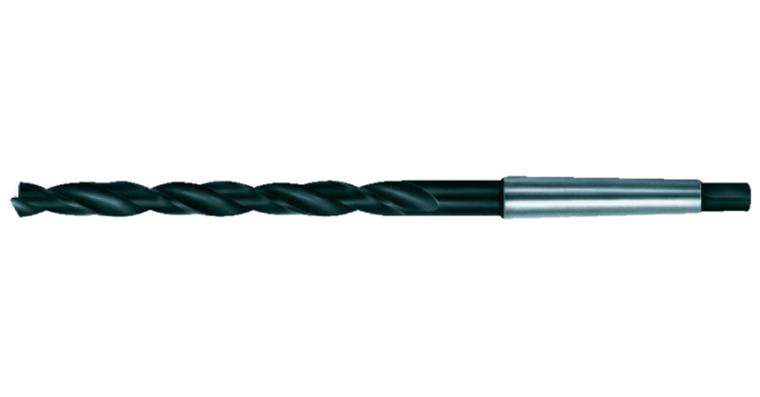

Long twist drill bit DIN 341 type N HSS ground MK1 14 mm

Long twist drill bit DIN 341 type N HSS ground MK1 14 mm

Long twist drill bit DIN 341 type N HSS ground MK1 14 mm
Item no: 1010610 140

Online price:

Available in 6-8 working days.

Application
For drilling through boring bushings and for drilling deep holes. For drilling steel and cast steel (alloyed and unalloyed), cast iron, malleable iron, spheroidal graphite iron, sinter iron, nickel silver and graphite up to approx. 900 N/mm² strength.

Execution
  • With Morse taper and flat tangs
  • Right-cutting
  • Tip angle 118°
  • Cone polished section
  • Steam treated
  • HSS, ground


Brand: HARTNER
Material to be processed: Steel
Cutting edge diameter: 14 mm
Chip flute length: 142 mm
Length: 223 mm
Morse taper size: MK 1
Cutting material: HSS
Type: N
Surface: Vaporised
Angle of the tip: 118 Degree
f steel 700: 0,20 mm/r
Coolant supply: 0 - not applicable
DIN: 341
Number of cutting edges: 1 PCS
Max. f in cast iron: 0,15 mm/r
Max. f in steel: 0,20 mm/r
Min. f in cast iron: 0,15 mm/r
Min. f in steel: 0,20 mm/r
Shank style: Morse taper

Manufacturer part no.: 82210 14

EAN no.: 4031096043974

Product Datasheet Datasheet cutting values
