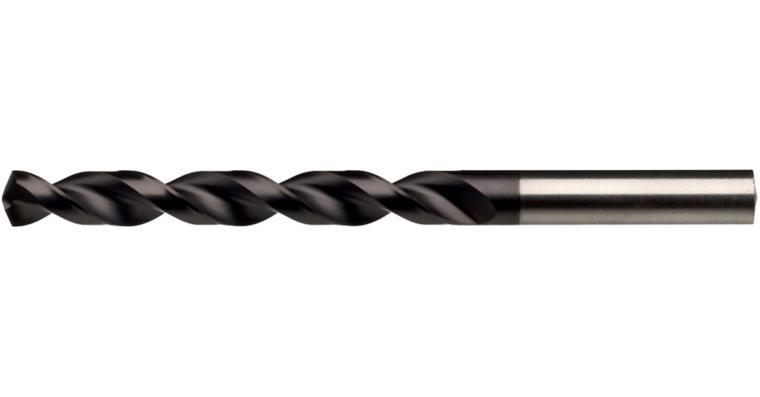

ATORN twist drill TLP HSSE TiAlN, DIN 338, 1.7 mm x 43 mm x 20 mm, 130°

ATORN twist drill TLP HSSE TiAlN, DIN 338, 1.7 mm x 43 mm x 20 mm, 130°

ATORN twist drill TLP HSSE TiAlN, DIN 338, 1.7 mm x 43 mm x 20 mm, 130°
Item no: 1010044 117

Online price:

Available in 6-8 working days.

Application
Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile for optimised chip removal at greater drilling depths without venting
  • TiAlN coating for increased service life demands
  • effective removal of chips thanks to large chipping spaces

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: TiAlN
Type: TLP
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 1,7 mm
Angle of the tip: 130 Degree
Chip flute length: 20 mm
Length: 43 mm
f steel 700: 0,03 mm/r
DIN: 338

ATORN-No.: 10478969

EAN no.: 4050293059076

Product Datasheet Datasheet cutting values
