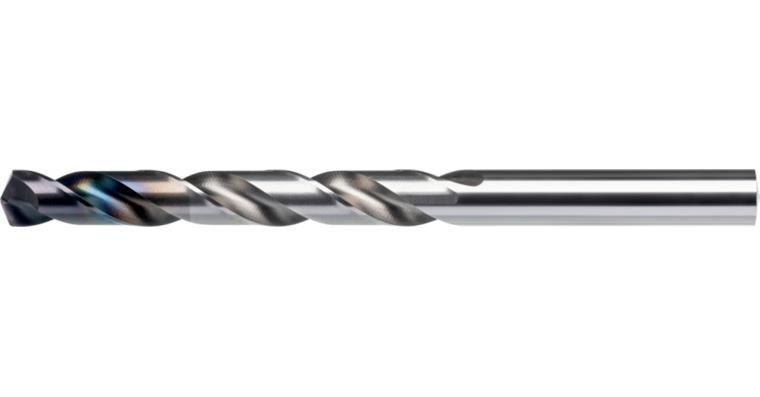

ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 4.9 mm

ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 4.9 mm

ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 4.9 mm
Item no: 1010043 149

Online price:

Available in 6-8 working days.

Application
For use in stainless steel, special alloys up to a strength of 1,300 N/mm².

Execution
Twist drill bit with stainless steel geometry

Advantage
  • Special geometry with aggressive cutting edge design for very smooth cutting
  • TiAlNplus coating for maximum service life

Delivery
Packing unit: Drill bit dia. 1.0-6.0 mm = 10 each (price per unit)


Brand: ATORN
Material to be processed: Stainless steel | Special alloy
Cutting material: HSSE
Surface of the head: TiAlN plus
Type: VA
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 4,9 mm
Angle of the tip: 130 Degree
Chip flute length: 52 mm
Length: 86 mm
f stainless steel: 0,06 mm/r
DIN: 338

ATORN-No.: 10487706

EAN no.: 4066107036935

Product Datasheet Datasheet cutting values
