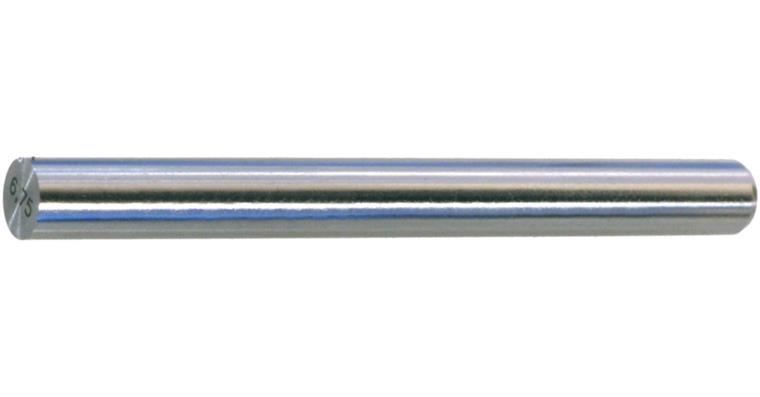

ATORN test pin RSB TC1 0.5 mm x 40 mm

ATORN test pin RSB TC1 0.5 mm x 40 mm

ATORN test pin RSB TC1 0.5 mm x 40 mm
Item no: 1003320 020

Online price:

Available in 4-6 working days.

Application
For measuring bore spacings, bore diameters, angularity of bores etc.

Execution
  • ground and lapped
  • hardened 58-62 HRC
  • Rust- and acid-resistant steel
  • Diameter from 0.300 to 0.999 mm with a length of 40 mm; diameter from 1.000 mm with a length of 70 mm
  • diameter from 3.00 mm: One end with 30-45° chamfer; other end deburred with diameter marking on end face
  • diameter from 1.5 to 2.999 mm: One end with 30-45° chamfer; other end deburred with diameter marking on outer surface
  • diameter from 1.00 to 1.499 mm: One end with 30-45° chamfer; other end deburred without diameter marking
  • up to 0.999 mm: Both ends deburred, without diameter marking


Brand: ATORN
Diameter: 0,50 mm
Tolerance class: 1
Material: Stainless and acid proof steel
Length: 40 mm
DIN: 2269
Calibration Group: AE

ATORN-No.: 32179931

EAN no.: 4066107089450
