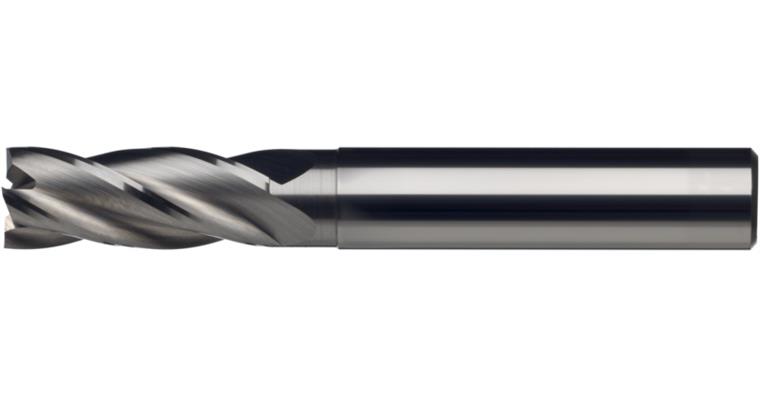

ATORN solid carbide end mill 4 cutters 14.0 mm shaft DIN 6535HA MF

ATORN solid carbide end mill 4 cutters 14.0 mm shaft DIN 6535HA MF

ATORN solid carbide end mill 4 cutters 14.0 mm shaft DIN 6535HA MF
Item no: 1003160 279

Online price:

Available in 5-7 working days.

Application
End mill for universal machining.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HA
  • centre cutting
  • 2-4 mm diameter without clearance
  • without edge protection chamfer


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 14 mm
Cutting edge length: 31 mm
Clearance length: 41 mm
Length: 88 mm
Clearance diameter: 13,5 mm
Shank diameter: 14 mm
fz steel 1000: 0,08 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910848

EAN no.: 4050293092288

Product Datasheet Datasheet cutting values
