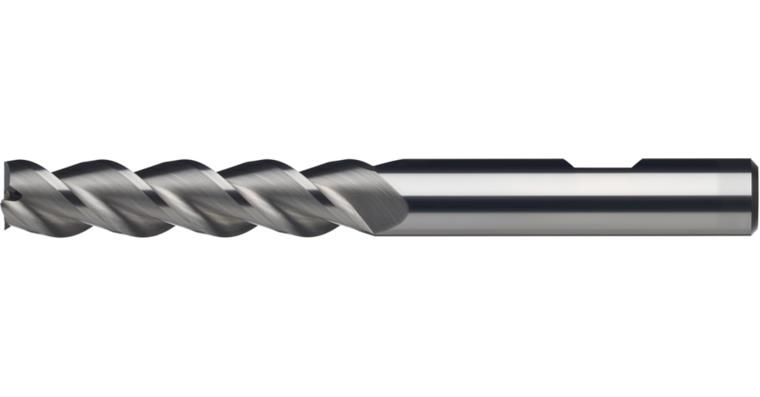

ATORN solid carbide square end mill Z3 long 11.00 mm shank DIN 6535 HB

ATORN solid carbide square end mill Z3 long 11.00 mm shank DIN 6535 HB

ATORN solid carbide square end mill Z3 long 11.00 mm shank DIN 6535 HB
Item no: 1003160 263

Online price:

Available in 5-7 working days.

Application
End mill for universal use when plunge milling, groove milling and keyway cutting as well as face milling and peripheral milling.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HB
  • centre cutting
  • without edge protection chamfer
  • uncoated


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 11 mm
Cutting edge length: 45 mm
Length: 102 mm
Edge protection chamfer length: 0,2 mm
Shank diameter: 12 mm
fz steel 1000: 0,058 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910811

EAN no.: 4050293091922

Product Datasheet Datasheet cutting values
