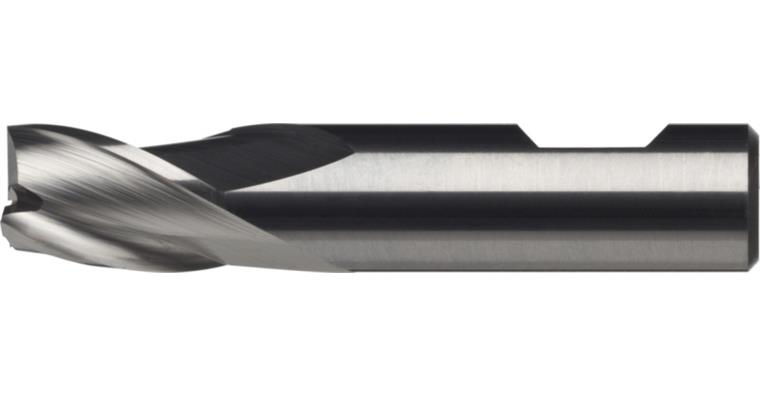

ATORN disposable SC milling cutter, 3 cutters, 4.5 mm, MF, D6535HB shank

ATORN disposable SC milling cutter, 3 cutters, 4.5 mm, MF, D6535HB shank

ATORN disposable SC milling cutter, 3 cutters, 4.5 mm, MF, D6535HB shank
Item no: 1003160 150

Online price:

Available in 5-7 working days.

Application
For universal machining in all material groups. Regrinding this cutting mill is not economical. It is cheaper to use the tool down to the wear line and replace it with a new one.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HB
  • Centre cutting
  • Uncoated


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 30°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 4,5 mm
Cutting edge length: 7 mm
Length: 38 mm
Shank diameter: 6 mm
fz steel 1000: 0,05 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910606

EAN no.: 4050293090116

Product Datasheet Datasheet cutting values
