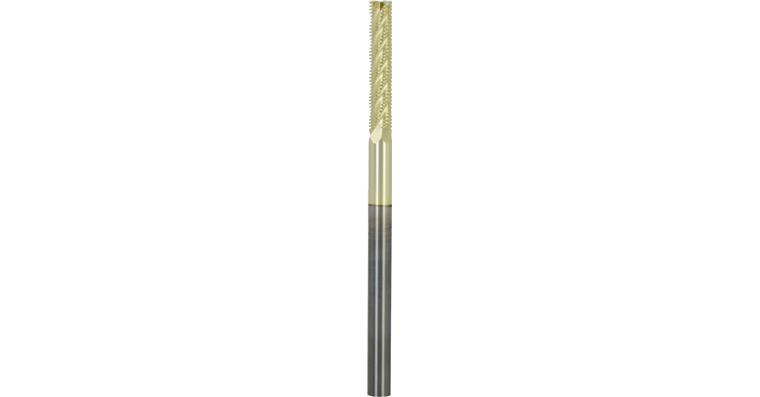

ATORN SC honeycomb cutter diameter 16.0 x 16 x 80 x 150 mm

ATORN SC honeycomb cutter diameter 16.0 x 16 x 80 x 150 mm

ATORN SC honeycomb cutter diameter 16.0 x 16 x 80 x 150 mm
Item no: 1003160 118

Online price:

Available in 5-7 working days.

Application
The milling cutter can be used in most honeycomb materials and allows for a long service life due to the carbide substrate used. In addition, the tried-and-tested cutting geometry enables excellent chip removal. The tool has a large blade length and can also be used for face milling.

Execution
  • Solid carbide ultra-fine grain
  • uncoated
  • Extremely sharp cutting edges
  • Straight shank in accordance with DIN 6535 HA


Brand: ATORN
Cutting material: SC
Surface: Coated
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 16 mm
Cutting edge length: 80 mm
Length: 150 mm
Shank diameter: 16 mm
fz aluminium: 0,01 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10617513

EAN no.: 4050293434750

Product Datasheet
