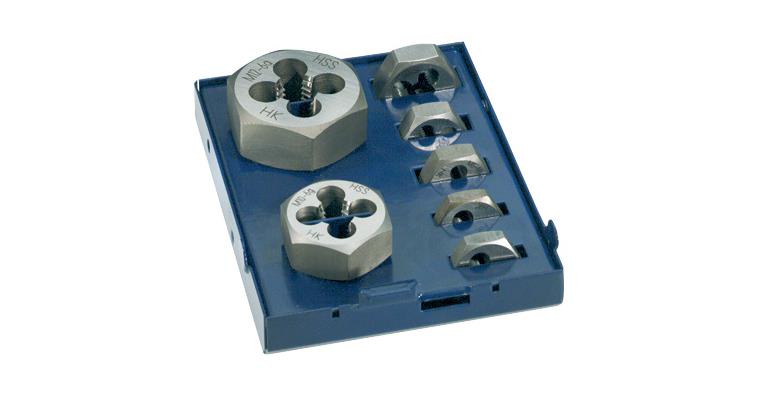

ATORN hexagonal threading die set HSS M3-M12 6g

ATORN hexagonal threading die set HSS M3-M12 6g

ATORN hexagonal threading die set HSS M3-M12 6g
Item no: 1003150 022

Online price:

Available in 8-10 working days.

Application
For retapping and repairing damaged metric male threads in the steel and NF metal material groups up to a strength of 700 N/mm².

Execution
Right-handed die set, hexagonal, for M3, M4, M5, M6, M8, M10 and M12, tol. 6g

Advantage
  • Innovative cutting geometry for high process reliability
  • Micro-cutting edge treatment and special lapping process for high process reliability and a long service life
  • Hexagonal design for tapping difficult to reach threads
  • Sturdy metal case protects the tool from dirt and damage


Brand: ATORN
Thread type: Metric thread
Cutting material: HSS
Tolerance of dies: 6 g
Min./max. thread-cutting area, metric: 3-12 mm
Number of pieces in assortment/set: 7 PCS
DIN: 382

ATORN-No.: 11190073

EAN no.: 4050293114874

Product Datasheet
