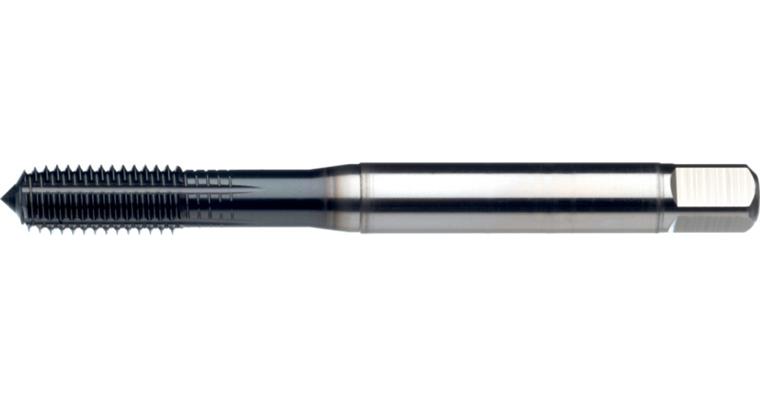

ATORN thread mould ISO 2 M16 HSSE-AlCrN, coated, with lubrication grooves

ATORN thread mould ISO 2 M16 HSSE-AlCrN, coated, with lubrication grooves

ATORN thread mould ISO 2 M16 HSSE-AlCrN, coated, with lubrication grooves
Item no: 1003141 516

Online price:

Available in 4-6 working days.

Application
For manufacturing metric threads in through and blind holes on CNC or conventional machines with oil lubrication in steel, stainless steel and non-ferrous metals up to a strength of 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability.
  • High-quality, torsion-resistant HSSE cutting material and surface finish for very high service life requirements.


Brand: ATORN
Material to be processed: Universal use
Surface: AlCrN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M16
Pitch: 2 mm
Cutting material: HSSE
Core hole diameter: 15 mm
Length: 110 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 12 mm
Shank square: 9 mm
Coolant supply: External
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 376 similar

ATORN-No.: 10473262

EAN no.: 4050293040913

Product Datasheet Datasheet cutting values
