ATORN screw tap HSSE VA C 376 40° M14 2 mm ISO2 S 2.5xD CNC M

ATORN screw tap HSSE VA C 376 40° M14 2 mm ISO2 S 2.5xD CNC M

ATORN screw tap HSSE VA C 376 40° M14 2 mm ISO2 S 2.5xD CNC M
Item no: 1003141 148

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the stainless steel material group.

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
long service life and high process reliability thanks to innovative cutting geometry for machining stainless steel


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M14
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 2 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 11 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 12 mm
Type: M MAX Control
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479521

EAN no.: 4050293190328

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN screw tap HSSE C DIN 371 40° UNC 3/8 in 16 2B S 2.5xD CNC P
    46,10 €
  • ATORN countersink, 90°, HSSE, T=1, extra long, 2.0-5.0 mm, 136 x 6 mm
    46,41 €

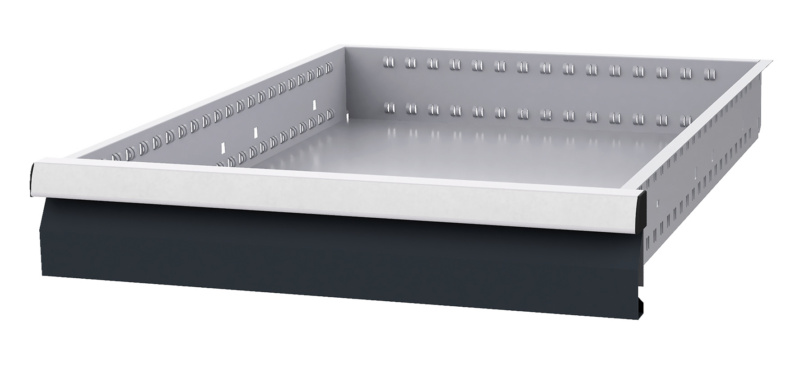

  • Drawer WxD 450x600mm full-exten. sl. 100 % 100kg front height 100mm RAL7035/7016
  •
