ATORN screw tap HSSE TiN B 376 40° M12 1.75 mm ISO2 S 2.5xD CNC UNI

ATORN screw tap HSSE TiN B 376 40° M12 1.75 mm ISO2 S 2.5xD CNC UNI

ATORN screw tap HSSE TiN B 376 40° M12 1.75 mm ISO2 S 2.5xD CNC UNI
Item no: 1003140 311

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, (stainless steel), non-ferrous metals and cast iron material groups up to a strength of 1300 N/mm².

Execution
Dimensions to: DIN 371 = reinforced shank (to M10), DIN 376 = protruding shank (from M12)

Advantage
Long service life and process reliability through innovative cutting geometry and universal use for maximum application flexibility


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1,75 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,2 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 2
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479584

EAN no.: 4050293188295

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap set HSSE A/D/C 352 0° M12 1.75 mm ISO2 D/S 3xD
  •
    ATORN hand tap set HSS D/C 2181 0° MF-L18 1.5 mm ISO2 D/S 3xD
  •
    ATORN screw tap HSSE-PM TiCN C 371 15° MF4 0.5 mm ISO2 x S 2.0xD CNC
  •
    ATORN screw tap HSSE-PM TiCN C 371 15° MF5 0.5 mm ISO2 x S 2.0xD CNC
  •
    ATORN screw tap HSSE-PM TiCN C 371 15° MF6 0.5 mm ISO2 x S 2.0xD CNC
  •
    T-slot cutter cyl./1835 B DIN 851, type N 6 cutting edges HSS-E 10x18 mm
  •
    Keyway cutter cyl./1835 B DIN 850 D, 6 cutting edges HSS-E 10.5 x 3.0 mm
  •
    Keyway cutter cyl./1835 B DIN 850 D, 6 cutting edges HSS-E 13.5 x 3.0 mm
  •
    Keyway cutter cyl./1835 B DIN 850 D, 6 cutting edges HSS-E 16.5 x 3.0 mm
  •
    Keyway cutter cyl./1835 B DIN 850 D, 8 cutting edges HSS-E 22.5 x 5.0 mm
  •

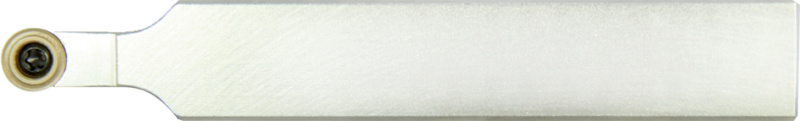

    Clamp holder SRDCN 1616 H08 neutral
  •

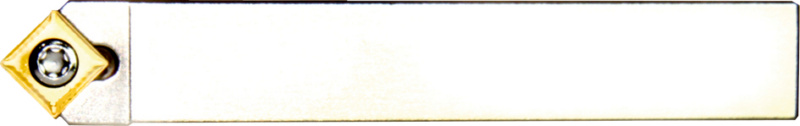

    Clamp holder SSDCN 1212 F09 neutral
