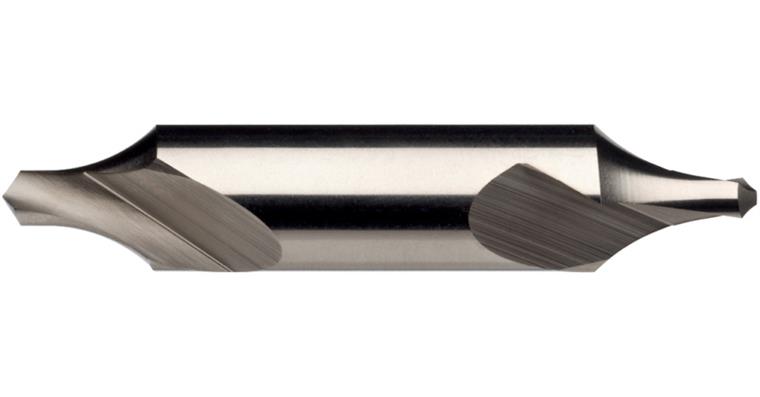

ATORN centre drill bit with radius HSS shape R 8.0 mm x 20 mm x 80 mm

Versions

Item no: 1003100 007

Online price:

Catalogue price: You save:

Available in 4-6 working days.

Min. order quantity: 1

Application
For centre drilling on CNC machines.

Execution
spiral-fluted design with relief grinding. diameter 0.5–0.8, ground on one side

Advantage

less risk of centre drill breakage, since the radius does not leave behind sharp edges
radius compensates for positioning inaccuracies and angle errors (sufficient bearing surface present even with offset lathe centre)

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSS
Surface: Uncoated
Form: R
Tool holding device: HA parallel shank
Cutting edge diameter: 8 mm
Shank diameter: 20,00 mm
Min./max cutting edge length: 20-20.7 mm
Length: 80 mm
Radius: 20 mm
f steel 700: 0,08 mm/r
DIN: 333

ATORN-No.: 10440569

EAN no.: 4050293414899

Product Datasheet Datasheet cutting values

Versions

Keywords:

[Text nicht gefunden]

ATORN centre drill HSSE TiAlN form A 4.0 mm x 10 mm x 56 mm
ATORN centre drill HSS form A, left, 4.0 mm x 10 mm x 55 mm
ATORN centre drill with bulge, HSS form W 4.0 mm x 10 mm x 56 mm
ATORN centre drill with radius, HSS form R, 4.0 mm x 10 mm x 56 mm
ATORN SV95C boring bar, steel, positive, left, A 10H SV95C R/L 07
ATORN grip jaw set with 4 grip inserts/4 contact sleeves

881,02 €
Precision pocket vernier callipers 0-300 mm/0-12 inch w. locking screw 0.05 mm

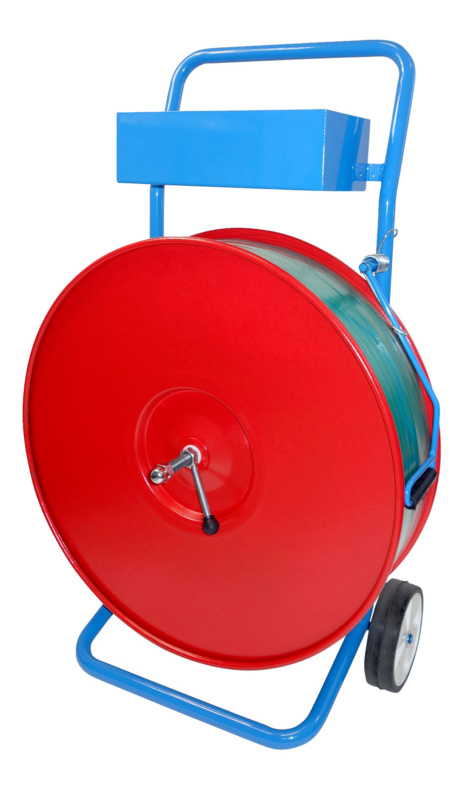

Dispenser for 200/280/406 mm core convertible, red plate
