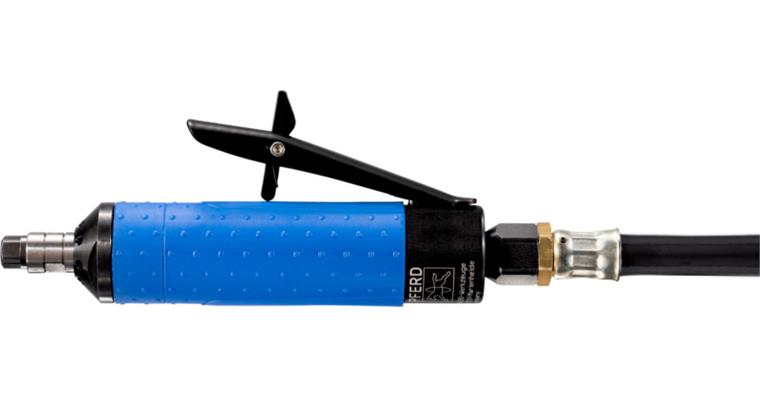

Druckluft-Geradschleifer PGS 3/300 HV 30.000 U/min 240 Watt

Druckluft-Geradschleifer PGS 3/300 HV 30.000 U/min 240 Watt

Druckluft-Geradschleifer PGS 3/300 HV 30.000 U/min 240 Watt
Item no: 1001442 035

Online price:

Available in 6-8 working days.

Application
Zum Schleifen, Glanzschleifen, Polieren und Entgraten.

Execution

  • Der Antrieb ist mit einer Spannzangenwerkzeugaufnahme für Schaftwerkzeuge ausgestattet.
  • Die Abluftführung befindet sich vorne.
  • Der Druckluftantrieb muss mit Öl verwendet werden. Durch das Hebelventil verfügt der Antrieb über eine Totmannschaltung.
  • Leistungsstark bei kompakter Bauform.
  • Spannzange 6 mm

Advantage
  • Durch seine Abluftführung nach vorne kann er im Einsatz den abgetragenen Schmutz vorne wegblasen.
  • Sicheres Arbeiten durch Totmannschaltung.

Delivery
2,5 m Zuluftschlauch mit Gewindeanschluss 1/4“ außen und Stecktülle mit Gewinde (STGI), Spannzange 6 mm, 2 Spannschlüssel.

Notes
Der Antrieb ist mit der vorgegebenen Öl-Tropfzahl zu betreiben, um einem vorzeitigen Ausfall vorzubeugen.

Brand: PFERD
Type: PGS 3/300
Design: Straight
Power rating: 240 W
Rotation speed: 30000 rpm
Collet chuck diameter: 6 mm
Air consumption: 600 l/min
Connection thread: G 1/4 inch
Weight: 0,38 kg
Operating pressure: 6,3 bar
Length: 160 mm

Manufacturer part no.: 80106029

EAN no.: 4007220430446

Product Datasheet
