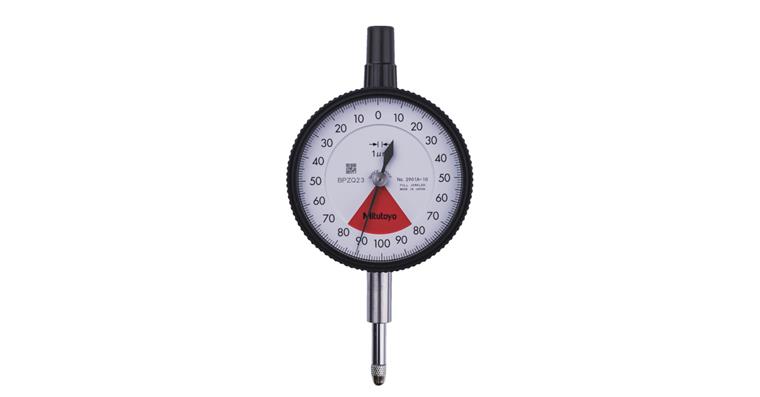

Dial gauge metric 0.16 mm, 0.001 mm, with flat end cover

Dial gauge metric 0.16 mm, 0.001 mm, with flat end cover

Dial gauge metric 0.16 mm, 0.001 mm, with flat end cover
Item no: 1001358 728

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Safety dial gauge with outer ring, dia. 57 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm
  • Dial gauges with just one pointer revolution eliminate reading errors as seen with dial gauges with continual indicator rotation.
  • The locking screw and stroke lever (optional) can be installed on either the left or right. Can be mounted and removed easily without tools


Brand: MITUTOYO
Length measuring range: 0,16 mm
Type: flat back panel, jewelled bearing
Digit increment: 0,001 mm
Measurement travel of one pointer revolution: 0,2 mm
Outer diameter: 57 mm
Error limit: 0,004 mm
Shank diameter: 8 mm
Shock protection: Yes
Min./max. measurement force: 0.4-1.4 N
Shaft length: 16,9 mm
Calibration Group: C
Scale value: 0,001 mm

Manufacturer part no.: 2901AB-10

Product Datasheet
