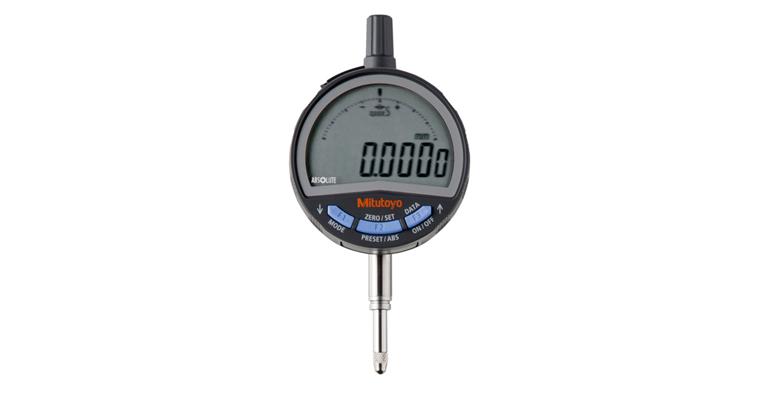

Dial gauge Digimatic ID-C, 12.7 mm end cover with eyelet

Dial gauge Digimatic ID-C, 12.7 mm end cover with eyelet

Dial gauge Digimatic ID-C, 12.7 mm end cover with eyelet
Item no: 1001357 169

Online price:

Still in stock: 4

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Preset function
  • ON/OFF
  • ABSOLUTE system for reliable measurement
  • Accuracy according to DIN 878
  • LOCK function (key lock)
  • Digimatic
  • Calculation function (with formula)

Advantage
Display rotates by 330°

Delivery
Operating instructions, quick-start guide, battery SR44

Notes
For connection cables, see art. no. 1033200 610.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Length measuring range: 12,7 mm
Digit increment: 0,001 mm
Error limit: 0,002 mm
Data transmission type: DIGIMATIC
Min./max. measurement force: 0-1.5 N
Repeat accuracy: 0,002 mm
IP protection class: IP 42
Absolute function: Yes
Automatic switch-off: No
Preset function: Yes
Shank diameter: 8 mm
Tolerance value entry: No
Manual tolerance markers: No
Rotating housing: Yes
Combined indicator for figure/scale reading: No
Reversible counting direction: Yes
Digit height: 11 mm

Manufacturer part no.: 543-700
