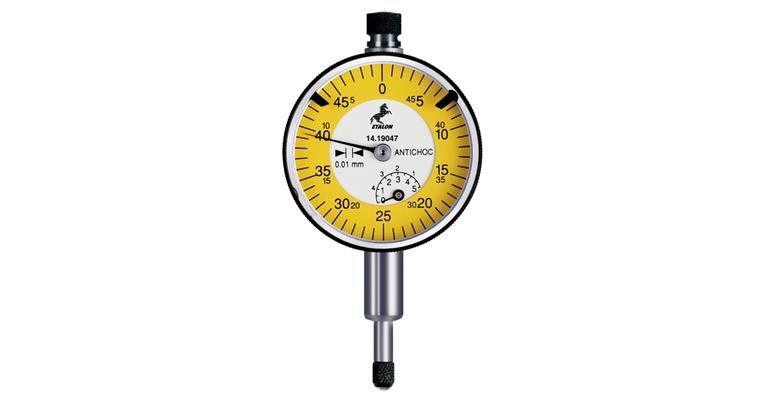

Analoge Messuhr, 5 mm, 0,01 mm, Ø 40 mm, IP40

Analoge Messuhr, 5 mm, 0,01 mm, Ø 40 mm, IP40

Analoge Messuhr, 5 mm, 0,01 mm, Ø 40 mm, IP40
Item no: 1001331 101

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • Housing made of metal, clamping shank and measuring pins made of stainless steel
  • Thread: M2.5 x 0.45 mm
  • Rotating dial
  • Adjustable tolerance marks

Delivery
1x dial gauge with gauge slide dia. 3.175 mm, mounted
1x declaration of conformity


Brand: TESA TECHNOLOGY
Length measuring range: 5 mm
Type: Skale 0-25-50
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Outer diameter: 40 mm
Error limit: 0,012 mm
Shank diameter: 8 mm
IP protection class: IP 40
Shock protection: Yes
Rotating housing: Yes
Min./max. measurement force: 0.63-0.77 N
DIN: 878
Calibration Group: C
Scale value: 0,01 mm

Manufacturer part no.: 01419047

EAN no.: 7630041109894

Product Datasheet
