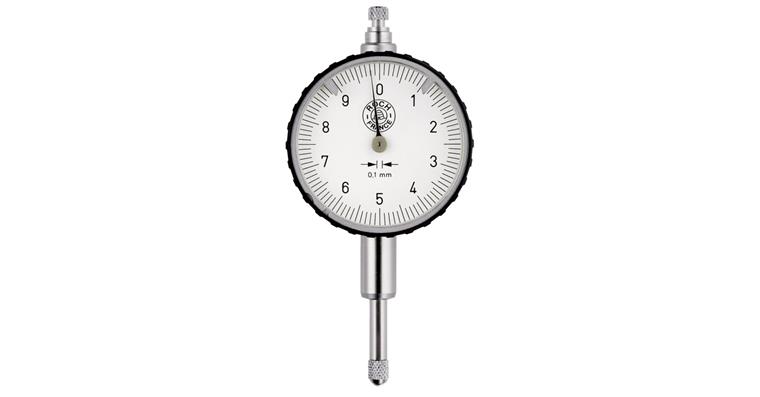

Analoge Messuhr, 10 mm, 0,01 mm, Ø 40 mm, IP40

Versions

Item no: 1001331 053

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution

Housing made of metal, clamping shank and measuring pins made of stainless steel
Thread: M2.5 x 0.45 mm
Rotating dial
Adjustable tolerance marks

Delivery
1x dial gauge with gauge slide dia. 3.175 mm, mounted
1x declaration of conformity

Brand: TESA TECHNOLOGY
Length measuring range: 10 mm
Type: Skale 0-5-10
Digit increment: 0,1 mm
Measurement travel of one pointer revolution: 10 mm
Outer diameter: 40 mm
Error limit: 0,05 mm
Shank diameter: 8 mm
IP protection class: IP 40
Rotating housing: No
Min./max. measurement force: 0.8-1.2 N
Other standard: Company standard
Calibration Group: C
Scale value: 0,1 mm

Manufacturer part no.: 0141760500

EAN no.: 7630041120530

Product Datasheet
